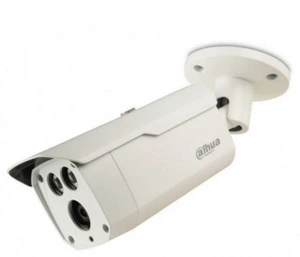

دوربین مداربسته داهوا مدل HAC-HFW1200DP ا Dahua HAC HFW1200DP IR bullet Camera

1/2.7 inch CMOS

1920(H)×1080(V), 2MP

Progressive

PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s

0.02Lux/F1.9, 30IRE, 0Lux IR on

>65dB

80 m (262.5 ft)

Auto; manual

Fixed-focal

M12

3.6 mm; 6 mm; 8 mm

F1.9

3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) 6 mm: 60° x 56° x 30° (diagonal x horizontal x vertical) 8 mm: 46° x 40° x 22° (diagonal x horizontal x vertical)

3.6 mm: 0.8 m (2.6 ft) 6 mm: 2 m (6.6 ft) 8 mm: 3.5 m (11.5 ft)

1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H

Auto switch by ICR

BLC/HLC/DWDR

Auto; manual

Auto; manual

2D NR

Yes

Yes

Off/On

Off/On (8 area, rectangle)

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

12V ±30% DC

Max 4.9W (12V DC, IR on)

IP67

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Mental throughout the whole casing

241.8 mm × 90.4 mm × 90.4 mm ( 9.52

0.59 Kg (1.30 lb)

0.69 Kg (1.52 lb)
